2PC Stainless Steel 304/316 Flanged Ball Valve
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:2PC
Connection:Flanged
Medium:Water,oil and Gas
Features |
|
ANSI CLASS150 |
Full Port |
Investment Casting |
Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved |
Casting Approved: AD2000-W0 |
PTFE Seats & Seals |
Inspection Testing: API598, EN12266 |
Anti-Static Device (option) |
Design: ASME B16.34 |
Flanged End: ASME B16.5 |

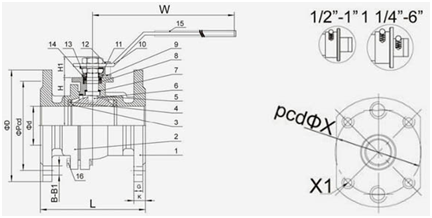

Material List |
||
Item |
Description |
Material |
1 |
BODY |
CF8/CF8M |
2 |
CAP |
CF8/CF8M |
3 |
BALL |
CF8/CF8M |
4 |
BALL SEAT |
RPTFE |
5 |
JOINT GASKET |
PTFE |
6 |
STEM |
304/316 |
7 |
THRUST WASHER |
PTFE |
8 |
STEM PACKING |
PTFE |
9 |
STOPPER |
304 |
10 |
HANDLE |
304 |
11 |
NUT |
304 |
12 |
BOLT |
304 |
13 |
PIN |
304 |
14 |
STEM RING |
304 |
15 |
HANDLE SLEEVE |
PVC |
16 |
BOLT |
304 |
Dimensions (mm) |
||||||||||||
Size |
Φd |
CLASS150 |
L |
H |
H1 |
W |
X |
X1 |
||||
G |
K |
D |
B |
B1 |
||||||||
1/2” |
15 |
8.2 |
10.7 |
88 |
10.2 |
4 |
108 |
26.5 |
16.45 |
130 |
42 |
M6 |
3/4” |
20 |
9.5 |
12 |
97 |
16.2 |
4 |
117.1 |
30.1 |
17.2 |
130 |
42 |
M6 |
1” |
25 |
10.5 |
13 |
107 |
16.2 |
4 |
127 |
35.25 |
23.3 |
160 |
50 |
M6 |
1-1/4” |
32 |
11.5 |
14 |
115 |
16.2 |
4 |
140 |
40.8 |
23.3 |
160 |
50 |
M6 |
1-1/2” |
38 |
12.5 |
16 |
125 |
16.2 |
4 |
166 |
48 |
30.2 |
200 |
70 |
M8 |
2” |
50 |
14 |
17.5 |
150.5 |
19.3 |
4 |
178 |
56.5 |
30.2 |
200 |
70 |
M8 |
2-1/2” |
65 |
16.8 |
20.3 |
176 |
19.3 |
4 |
190 |
74.5 |
29.7 |
220 |
70 |
M8 |
3” |
80 |
17.7 |
21 |
188.7 |
19.3 |
4 |
203 |
86 |
39.6 |
260 |
102 |
M10 |
4” |
100 |
17.5 |
21 |
227 |
19.3 |
8 |
229 |
107.75 |
38.1 |
260 |
102 |
M10 |
5” |
125 |
20 |
23 |
252 |
22 |
8 |
356 |
133.25 |
- |
- |
125 |
M12 |
6” |
150 |
21 |
24 |
277 |
22 |
8 |
394 |
152.75 |
- |
- |
125 |
M12 |
2PC Stainless Steel 304/316 Flanged Ball Valve
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:2PC
Connection:Flanged
Medium:Water,oil and Gas
Features |
|
ANSI CLASS150 |
Full Port |
Investment Casting |
Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved |
Casting Approved: AD2000-W0 |
PTFE Seats & Seals |
Inspection Testing: API598, EN12266 |
Anti-Static Device (option) |
Design: ASME B16.34 |
Flanged End: ASME B16.5 |
Material List |
||
Item |
Description |
Material |
1 |
BODY |
CF8/CF8M |
2 |
CAP |
CF8/CF8M |
3 |
BALL |
CF8/CF8M |
4 |
BALL SEAT |
RPTFE |
5 |
JOINT GASKET |
PTFE |
6 |
STEM |
304/316 |
7 |
THRUST WASHER |
PTFE |
8 |
STEM PACKING |
PTFE |
9 |
STOPPER |
304 |
10 |
HANDLE |
304 |
11 |
NUT |
304 |
12 |
BOLT |
304 |
13 |
PIN |
304 |
14 |
STEM RING |
304 |
15 |
HANDLE SLEEVE |
PVC |
16 |
BOLT |
304 |
Dimensions (mm) |
||||||||||||
Size |
Φd |
CLASS150 |
L |
H |
H1 |
W |
X |
X1 |
||||
G |
K |
D |
B |
B1 |
||||||||
1/2” |
15 |
8.2 |
10.7 |
88 |
10.2 |
4 |
108 |
26.5 |
16.45 |
130 |
42 |
M6 |
3/4” |
20 |
9.5 |
12 |
97 |
16.2 |
4 |
117.1 |
30.1 |
17.2 |
130 |
42 |
M6 |
1” |
25 |
10.5 |
13 |
107 |
16.2 |
4 |
127 |
35.25 |
23.3 |
160 |
50 |
M6 |
1-1/4” |
32 |
11.5 |
14 |
115 |
16.2 |
4 |
140 |
40.8 |
23.3 |
160 |
50 |
M6 |
1-1/2” |
38 |
12.5 |
16 |
125 |
16.2 |
4 |
166 |
48 |
30.2 |
200 |
70 |
M8 |
2” |
50 |
14 |
17.5 |
150.5 |
19.3 |
4 |
178 |
56.5 |
30.2 |
200 |
70 |
M8 |
2-1/2” |
65 |
16.8 |
20.3 |
176 |
19.3 |
4 |
190 |
74.5 |
29.7 |
220 |
70 |
M8 |
3” |
80 |
17.7 |
21 |
188.7 |
19.3 |
4 |
203 |
86 |
39.6 |
260 |
102 |
M10 |
4” |
100 |
17.5 |
21 |
227 |
19.3 |
8 |
229 |
107.75 |
38.1 |
260 |
102 |
M10 |
5” |
125 |
20 |
23 |
252 |
22 |
8 |
356 |
133.25 |
- |
- |
125 |
M12 |
6” |
150 |
21 |
24 |
277 |
22 |
8 |
394 |
152.75 |
- |
- |
125 |
M12 |
Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.
In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.
Jazzy will take the initiative to send the products to inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that is in an inspection process. All larger samples will be sent for inspection, meeting the national inspection and testing standards.

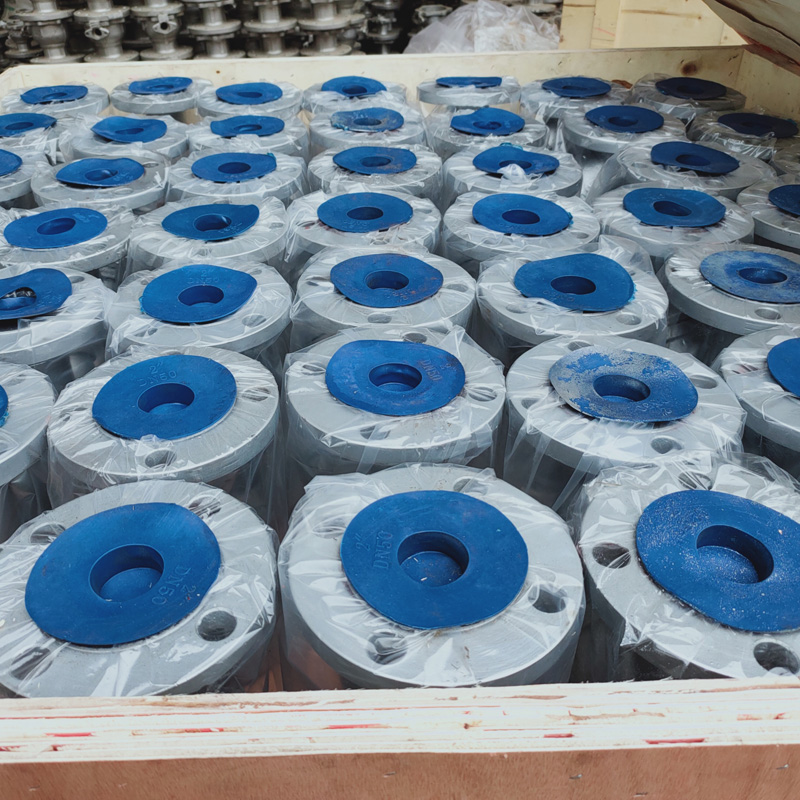

Stock of Finished Goods
