Carbon Steel Butt Weld Equal Tee

  • JAZZY

Size(INCH):
Availability:


Carbon Steel Butt Weld Equal Tee


Material:ASTM A234 WPB

Standard:ASME B16.9

Type:   Tee

Schedule: SCH5S,SCH10S,SCH40S,SCH80S

Size:1/2" to 30"

Carbon Steel Butt Weld Equal Tee Sizes & Dimensions


Tee


Tee (Straight) SCH5S,SCH10S,SCH40S,SCH80S

Nominal

Pipe Size

Outside

Diameter

O.D.

Center to End

5S

Run

C

Outlet

M

T1

I.D

1/2

0.840

1.00

1.00

0.065

0.710

3/4

1.050

1.12

1.12

0.065

0.920

1

1.315

1.50

1.50

0.065

1.185

1-1/4

1.660

1.88

1.88

0.065

1.530

1-1/2

1.900

2.25

2.25

0.065

1.770

2

2.375

2.50

2.50

0.065

2.245

2-1/2

2.875

3.00

3.00

0.083

2.709

3

3.500

3.38

3.38

0.083

3.334

3-1/2

4.000

3.75

3.75

0.083

3.834

4

4.500

4.12

4.12

0.083

4.334

5

5.563

4.88

4.88

0.109

5.345

6

6.625

5.62

5.62

0.109

6.407

8

8.625

7.00

7.00

0.109

8.407

10

10.750

8.50

8.50

0.134

10.482

12

12.750

10.00

10.00

0.156

12.438

14

14.000

11.00

11.00

0.156

13.688

16

16.000

12.00

12.00

0.165

15.670

18

18.000

13.50

13.50

0.165

17.670

20

20.000

15.00

15.00

0.188

19.624

22

22.000

16.50

16.50

0.188

21.624

24

24.000

17.00

17.00

0.218

23.564

30

30.000

22.00

22.00

0.250

29.500

Nominal

Pipe Size

10S

40S

80S

T

I.D.

T

I.D.

T

I.D.

1/2

0.083

0.674

0.109

0.622

0.147

0.546

3/4

0.083

0.884

0.113

0.824

0.154

0.742

1

0.109

1.097

0.133

1.049

0.179

0.957

1-1/4

0.109

1.442

0.140

1.380

0.191

1.278

1-1/2

0.109

1.682

0.145

1.610

0.200

1.500

2

0.109

2.157

0.154

2.067

0.218

1.939

2-1/2

0.120

2.635

0.203

2.469

0.276

2.323

3

0.120

3.260

0.216

3.068

0.300

2.900

3-1/2

0.120

3.760

0.226

3.548

0.318

3.364

4

0.120

4.260

0.237

4.026

0.337

3.826

5

0.134

5.295

0.258

5.047

0.375

4.813

6

0.134

6.402

0.280

6.065

0.432

5.761

8

0.148

8.402

0.322

7.981

0.500

7.625

10

0.165

10.420

0.365

10.020

0.500

9.750

12

0.180

12.390

0.375

12.000

0.500

11.750

14

0.188

13.624

0.375

13.250

0.500

13.000

16

0.188

15.624

0.375

15.250

0.500

15.000

18

0.188

17.624

0.375

17.250

0.500

17.000

20

0.218

19.564

0.375

19.250

0.500

19.000

22

0.218

21.564

-

-

-

-

24

0.250

23.500

0.375

23.250

0.500

23.000

30

0.312

29.376

-

-

-

-




Advantages

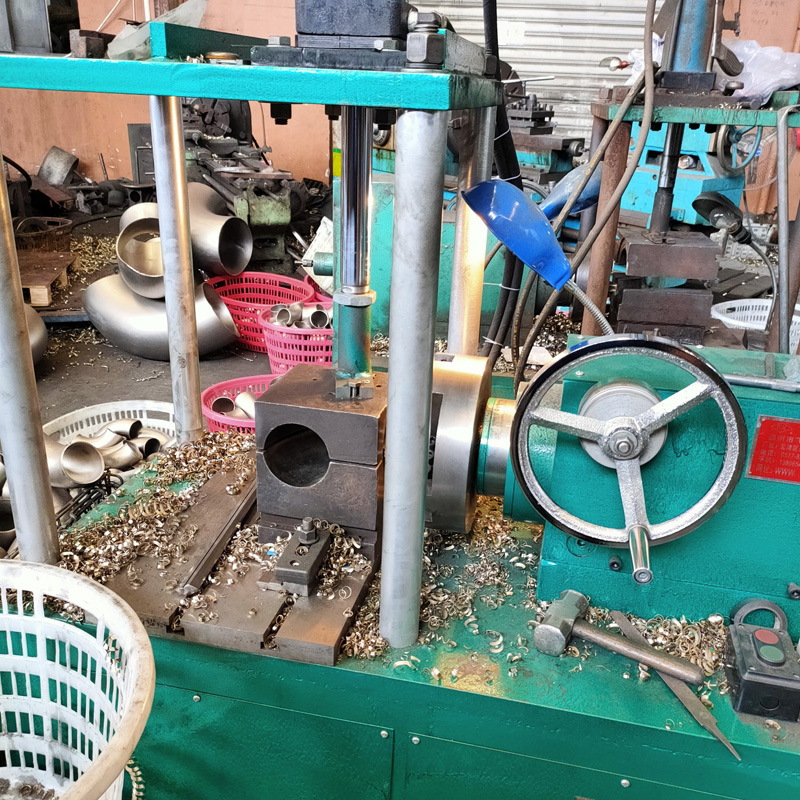

High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


111


Standardized Stainless Steel Butt Weld Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.

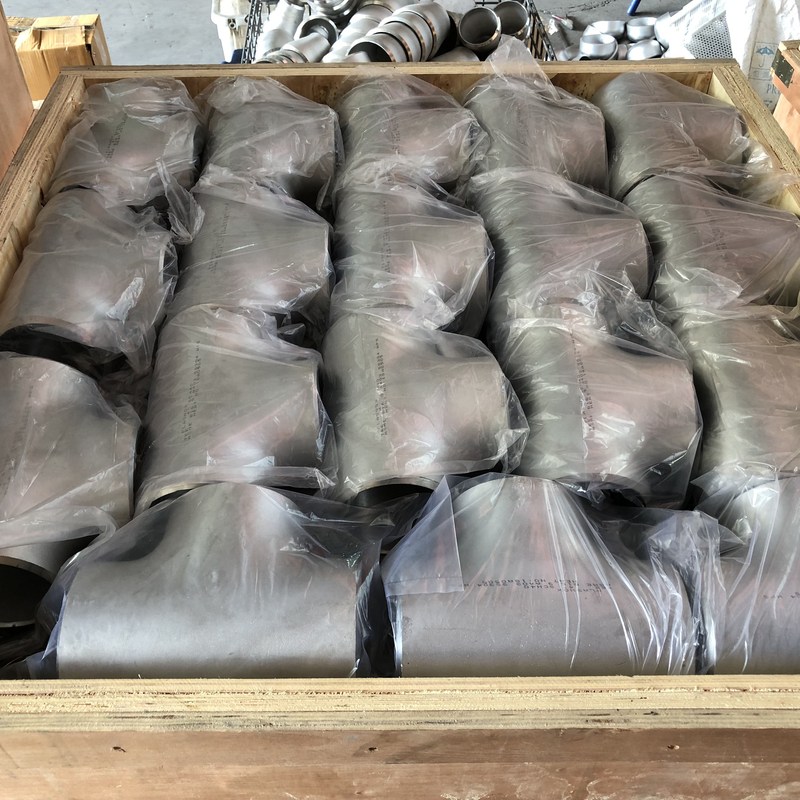

butt welded fitting15
