1PC Stainless Steel 304/316 Ball Valve
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:1PC
Connection:Threaded
Medium:Water,oil and Gas
Features |
|
1000PSI/PN63 |
Reduce Port |
Investment Casting |
Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved |
W.P.: 1/4”-2” @ 1000psi, 2-1/2” to 4” @ 800psi |
PTFE Seats & Seals |
Inspection Testing: API598, EN12266 |
Thread: ASME B1.20.1, BS21, DIN2999/259, ISO228-1 |

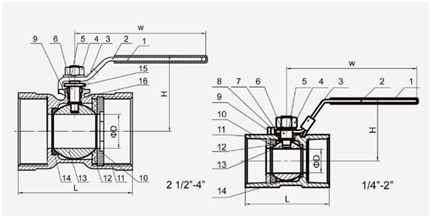

Material List |
||
Item |
Description |
Material |
1 |
HANDLE SLEEVE |
PVC |
2 |
HANDLE |
304 |
3 |
LOCKING |
304 |
4 |
STEM NUT |
304 |
5 |
SPRING WASHER |
304 |
6 |
STEM |
304/316 |
7 |
PACKING RING |
304 |
8 |
STEM PACKING |
PTFE |
9 |
THRUST WASHER |
PTFE |
10 |
CAP |
WCB/CF8/CF8M |
11 |
BODY |
WCB/CF8/CF8M |
12 |
BALL SEAT |
PTFE |
13 |
BALL |
304/316 |
14 |
BALL SEAT |
PTFE |
15 |
GLAND NUT |
304 |
16 |
STEM PACKING |
PTFE |
Dimensions (mm) |
|||||||||||
Size |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
2-1/2” |
3” |
4” |
D |
5 |
6.8 |
9.2 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
64 |
L |
39 |
44 |
56.5 |
59 |
71 |
78 |
83 |
100 |
120 |
140 |
170 |
H |
31 |
36 |
41 |
44 |
48 |
54 |
65 |
72 |
80 |
100 |
129 |
W |
65 |
85 |
95 |
95 |
111 |
111 |
135 |
135 |
154 |
191 |
246 |
S |
17 |
21 |
25 |
32 |
38 |
49 |
53 |
65 |
83 |
98 |
127 |
1PC Stainless Steel 304/316 Ball Valve
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:1PC
Connection:Threaded
Medium:Water,oil and Gas
Features |
|
1000PSI/PN63 |
Reduce Port |
Investment Casting |
Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved |
W.P.: 1/4”-2” @ 1000psi, 2-1/2” to 4” @ 800psi |
PTFE Seats & Seals |
Inspection Testing: API598, EN12266 |
Thread: ASME B1.20.1, BS21, DIN2999/259, ISO228-1 |
Material List |
||
Item |
Description |
Material |
1 |
HANDLE SLEEVE |
PVC |
2 |
HANDLE |
304 |
3 |
LOCKING |
304 |
4 |
STEM NUT |
304 |
5 |
SPRING WASHER |
304 |
6 |
STEM |
304/316 |
7 |
PACKING RING |
304 |
8 |
STEM PACKING |
PTFE |
9 |
THRUST WASHER |
PTFE |
10 |
CAP |
WCB/CF8/CF8M |
11 |
BODY |
WCB/CF8/CF8M |
12 |
BALL SEAT |
PTFE |
13 |
BALL |
304/316 |
14 |
BALL SEAT |
PTFE |
15 |
GLAND NUT |
304 |
16 |
STEM PACKING |
PTFE |
Dimensions (mm) |
|||||||||||
Size |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
2-1/2” |
3” |
4” |
D |
5 |
6.8 |
9.2 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
64 |
L |
39 |
44 |
56.5 |
59 |
71 |
78 |
83 |
100 |
120 |
140 |
170 |
H |
31 |
36 |
41 |
44 |
48 |
54 |
65 |
72 |
80 |
100 |
129 |
W |
65 |
85 |
95 |
95 |
111 |
111 |
135 |
135 |
154 |
191 |
246 |
S |
17 |
21 |
25 |
32 |
38 |
49 |
53 |
65 |
83 |
98 |
127 |
